Bellingham 1 Column Cast Iron Radiator

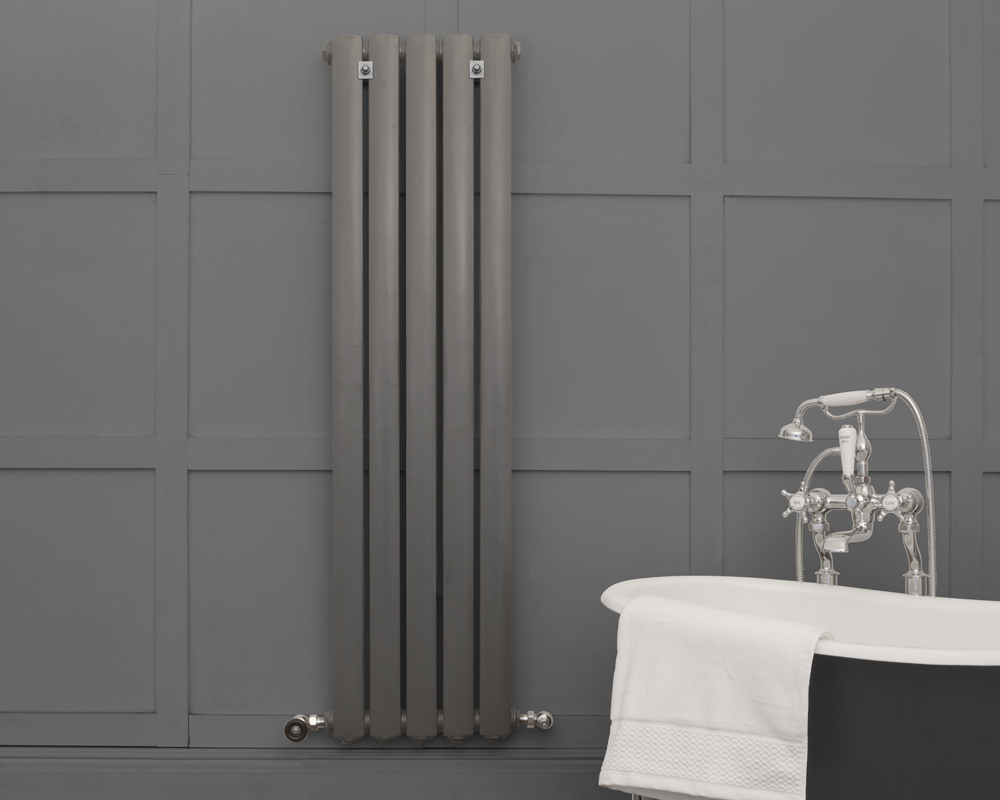

Farrow & Ball Mole's Breath

Description

Available in a choice of heights, bespoke build to your required length. These radiators are wall mounted.

LIFETIME GUARANTEE.

An alternative product you may also be interested in would be our Carsington 1 Column Vertical Cast Iron Radiator.

SRP from £106.50

See Bespoke Finishes
Nearest Stockist
Radiator section colours and finishes

Can be painted in any colour of your choice or why not choose from one of the many designer colours available.

With our onsite paint and spray shop facilities, we can finish any radiator from a choice of over 10,000 colours and offer an expert colour matching service to attain even greater levels of customisation.

Please note that colours can vary from printed brochures and those shown on websites, we recommend a free colour swatch prior to purchase which can be arranged via your stockist.

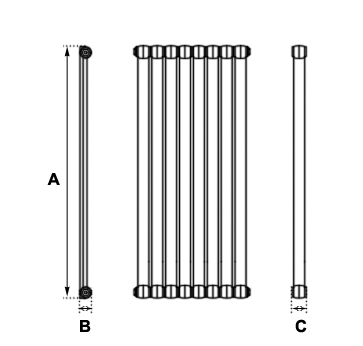

Dimensions / Further Details

* per section

Code Column
Qty
A
(mm)
B
(mm)
C
(mm)
ΔT 30°* ΔT 50°* ΔT 60°* Weight (KG)* Stock
Status
BTUs Watts BTUs Watts BTUs Watts Empty Filled
TCR005 1 1066 62 77 0 0 322 94 406 119 6.21 7.94
TCR006 1 1466 62 77 0 0 436 128 549 161 8.79 10.44
TCR007 1 1666 62 77 0 0 478 140 604 177 9.84 11.68
TCR008 1 1866 62 77 0 0 539 158 682 200 10.78 12.82

The above measurements are given for guidance only and should not be used for the fixing of pipework.

Due to our radiators being bespoke and hand assembled, variations in seal compression and the machined faces can occur. We are able to supply measurements prior to dispatch once we have completed the assembly process should you require them.

Carron accepts no responsibility for customers/clients who choose to install pipe work prior to having their cast iron radiators delivered to site.

Code Compatible Wall Stays
HAN103 HAN120 HAN121 HAN122 HAN123 HAN124 HAN125 HAN126 HAN127 HAN128 HAN129 HAN130 HAN131 HAN205 LD055 LD056 RTO035
TCR005 No No No No No No No No No No No No No No No No No
TCR006 No No No No No No No No No No No No No No No No No
TCR007 No No No No No No No No No No No No No No No No No
TCR008 No No No No No No No No No No No No No No No No No

Radiator Heating Elements

All our radiator heating elements are compatible with all our cast iron radiators.

Please refer to the table below for the minimum number of sections required for each radiator in this range. Denotes the minimum number of sections required to achieve maximum heat output for the heating element.

Heat Output 1200 Watts 1500 Watts 2000 Watts
Code
Minimum no. of sections Minimum no. of sections Minimum no. of sections
TCR005 8 (13) 8 (16) 9 (21)
TCR006 8 (9) 8 (12) 9 (16)
TCR007 8 (9) 8 (11) 9 (14)
TCR008 8 (8) 8 (9) 9 (13)
