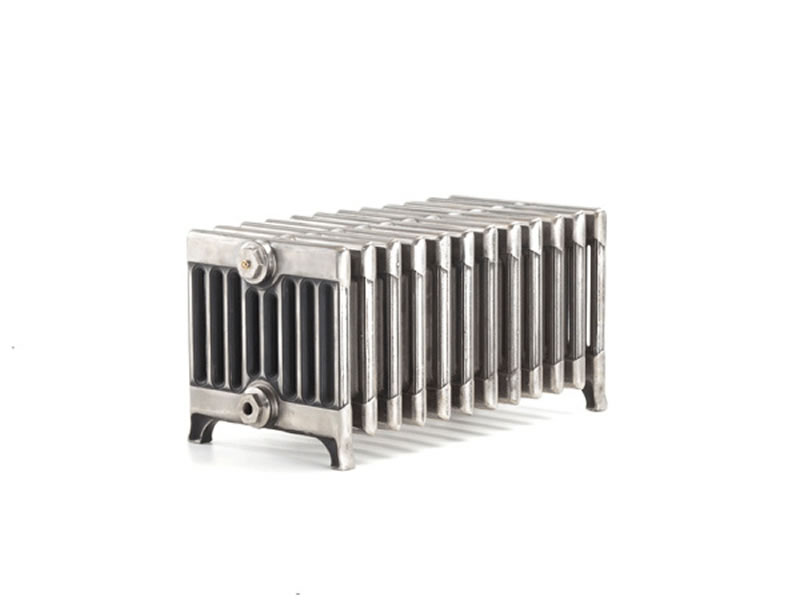

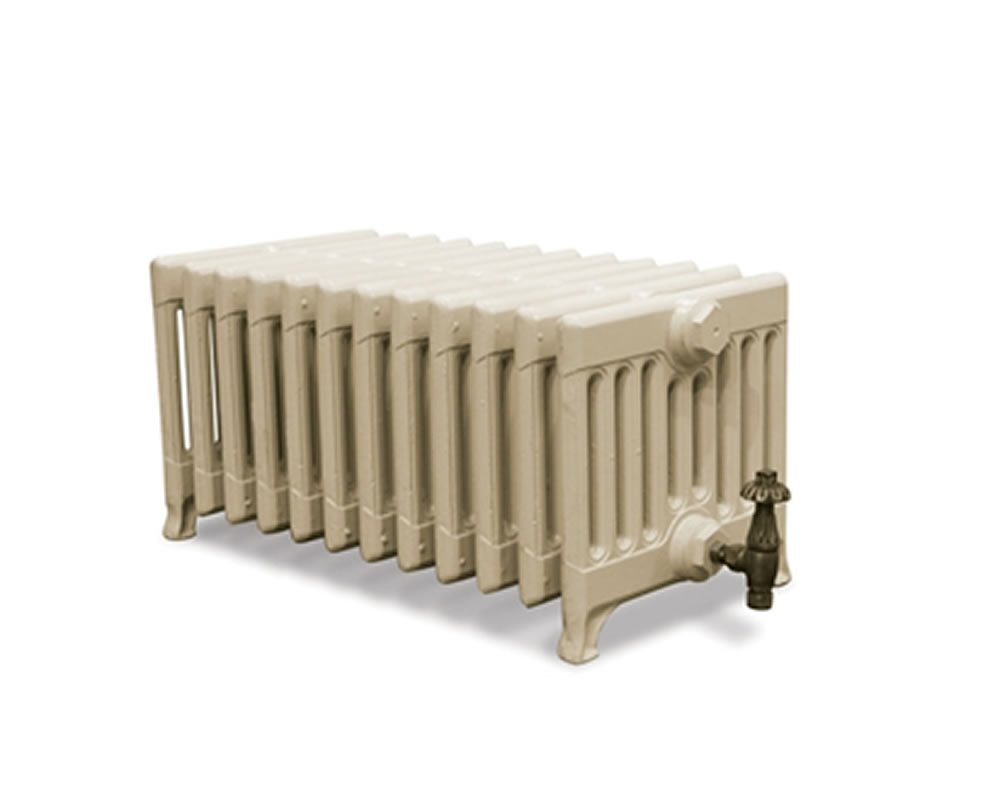

A traditional Victorian radiator which was first produced in America in the 1880s.

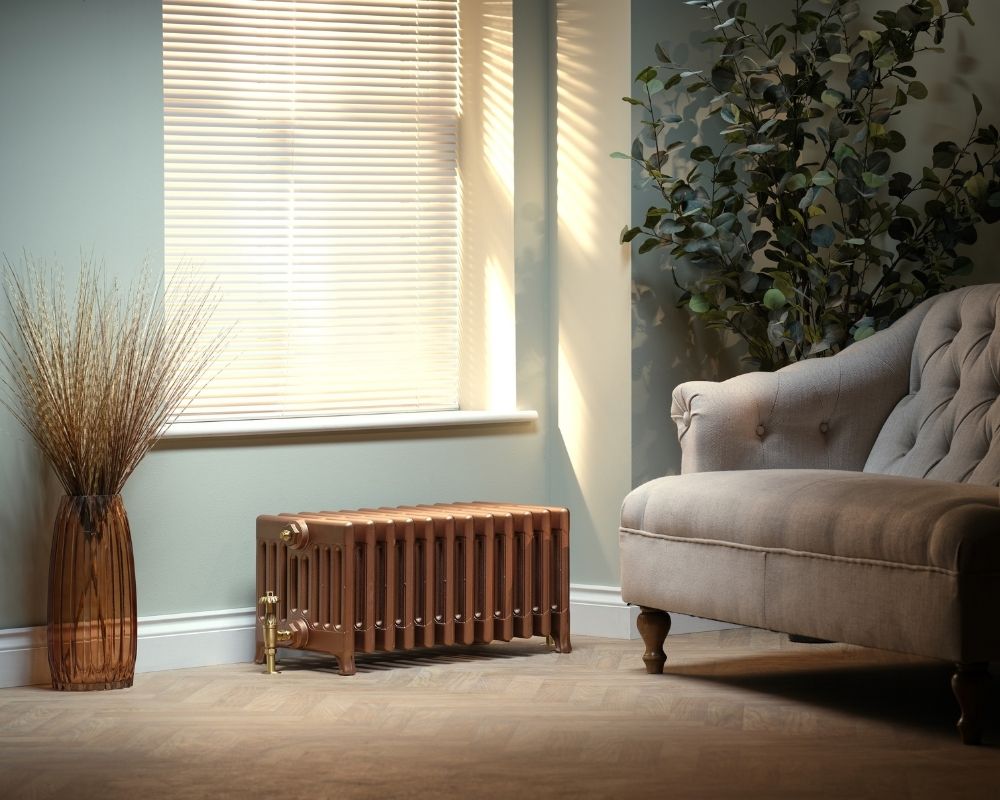

Due to its low height the traditional 9 Column Victorian radiator is particularly suited to being sited in bay windows.
Featuring a great heat output per section this model is sure to bring warmth to any home.
Also available - the 2 column Victorian, 4 column Victorian and the 6 column Victorian radiator.
All our cast iron radiators can be hand gilded. Click below to view just a few of the bespoke options available.
LIFETIME GUARANTEE.
An alternative product you may also be interested in would be our Rathmell 2 Column Cast Iron Radiator.
SRP from £43.00 per section
Can be painted in any colour of your choice or why not choose from one of the many designer colours available.
With our onsite paint and spray shop facilities, we can finish any radiator from a choice of over 10,000 colours and offer an expert colour matching service to attain even greater levels of customisation.
Please note that colours can vary from printed brochures and those shown on websites, we recommend a free colour swatch prior to purchase which can be arranged via your stockist.
* per section

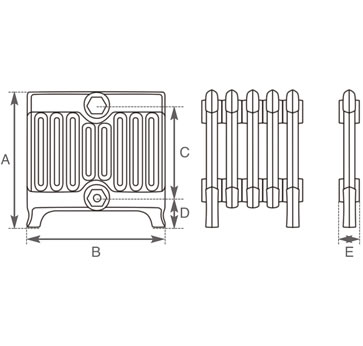

| Code | Column Qty |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
ΔT 30°* | ΔT 50°* | ΔT 60°* | Weight (KG)* | Stock Status |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BTUs | Watts | BTUs | Watts | BTUs | Watts | Empty | Filled | ||||||||
| LD009/010 | 9 | 330 | 330 | 217 | 75 | 56 | 174 | 51 | 332 | 97 | 418 | 123 | 7.8 | 8.9 | |
The above measurements are given for guidance only and should not be used for the fixing of pipework.
Due to our radiators being bespoke and hand assembled, variations in seal compression and the machined faces can occur. We are able to supply measurements prior to dispatch once we have completed the assembly process should you require them.
Carron accepts no responsibility for customers/clients who choose to install pipe work prior to having their cast iron radiators delivered to site.
| Code | Compatible Wall Stays | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HAN103 | HAN120 | HAN121 | HAN122 | HAN123 | HAN124 | HAN125 | HAN126 | HAN127 | HAN128 | HAN129 | HAN130 | HAN131 | HAN205 | LD055 | LD056 | RTO035 | |
| LD009/010 | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No |
All our radiator heating elements are compatible with all our cast iron radiators.
Please refer to the table below for the minimum number of sections required for each radiator in this range. ✝Denotes the minimum number of sections required to achieve maximum heat output for the heating element.
| Heat Output | 1200 Watts | 1500 Watts | 2000 Watts |
|---|---|---|---|
| Code | |||
| Minimum no. of sections | Minimum no. of sections | Minimum no. of sections | |
| LD009/010 | 10 (12✝) | 11 (15✝) | 12 (21✝) |
