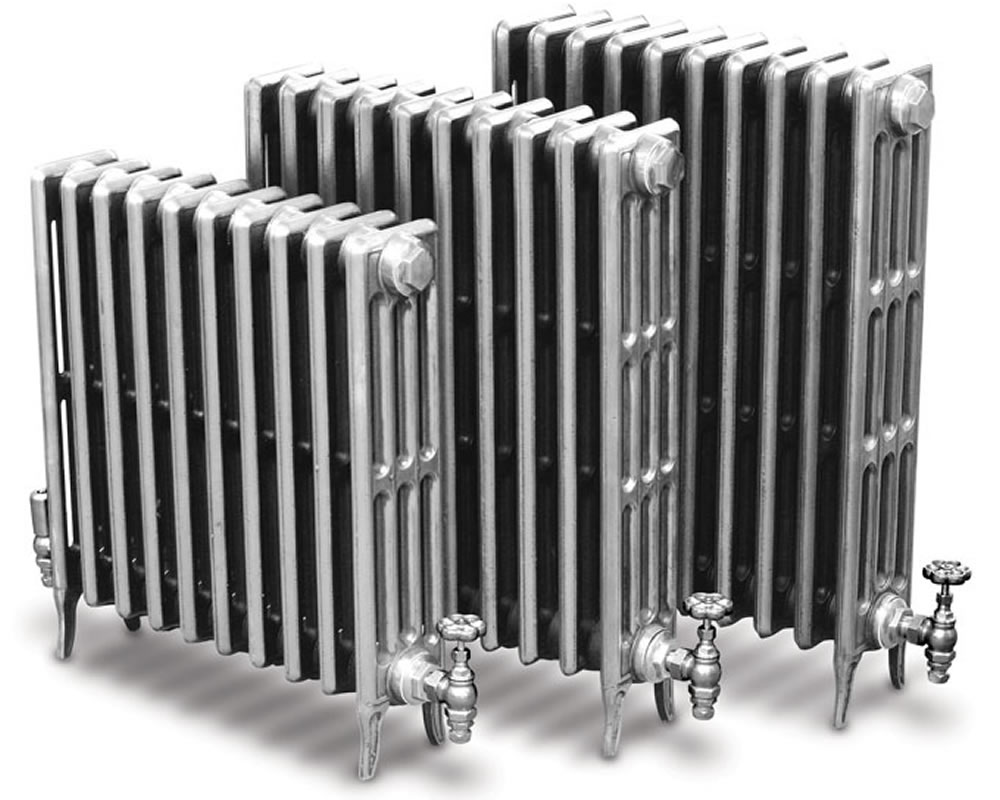

Victorian 4 Column Cast Iron Radiators

victorian painted column radiator under window in period property

Hammered Bronze

Description

Available in 5 heights. A traditional Victorian radiator which was first produced in America in the 1880s.

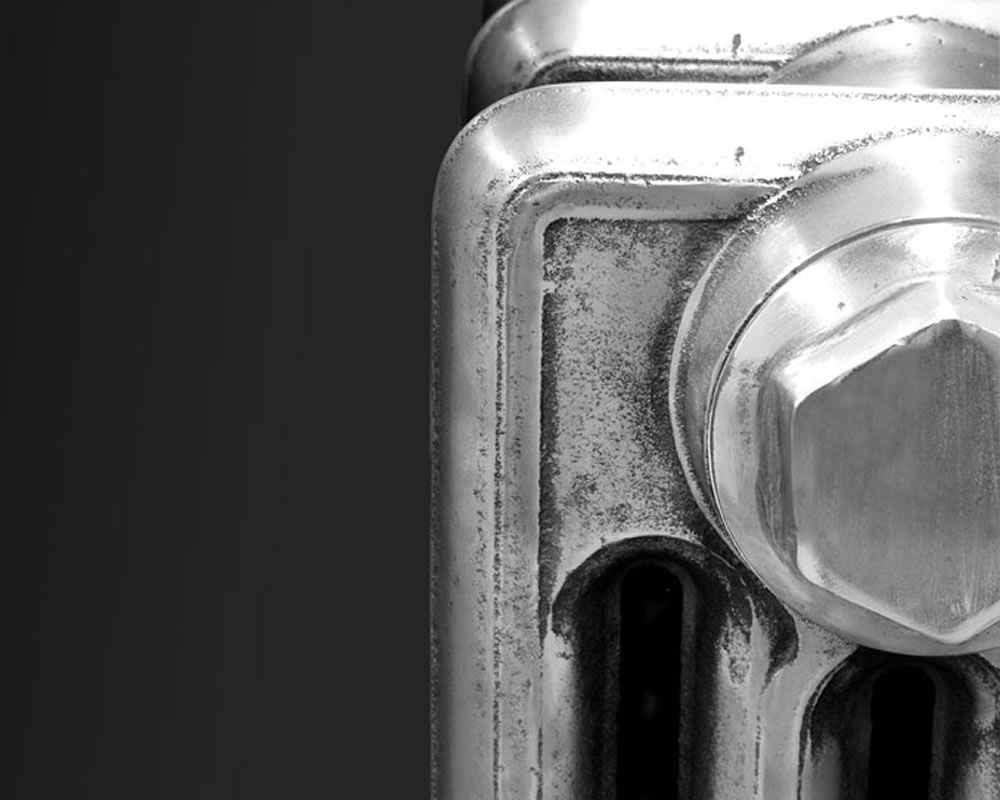

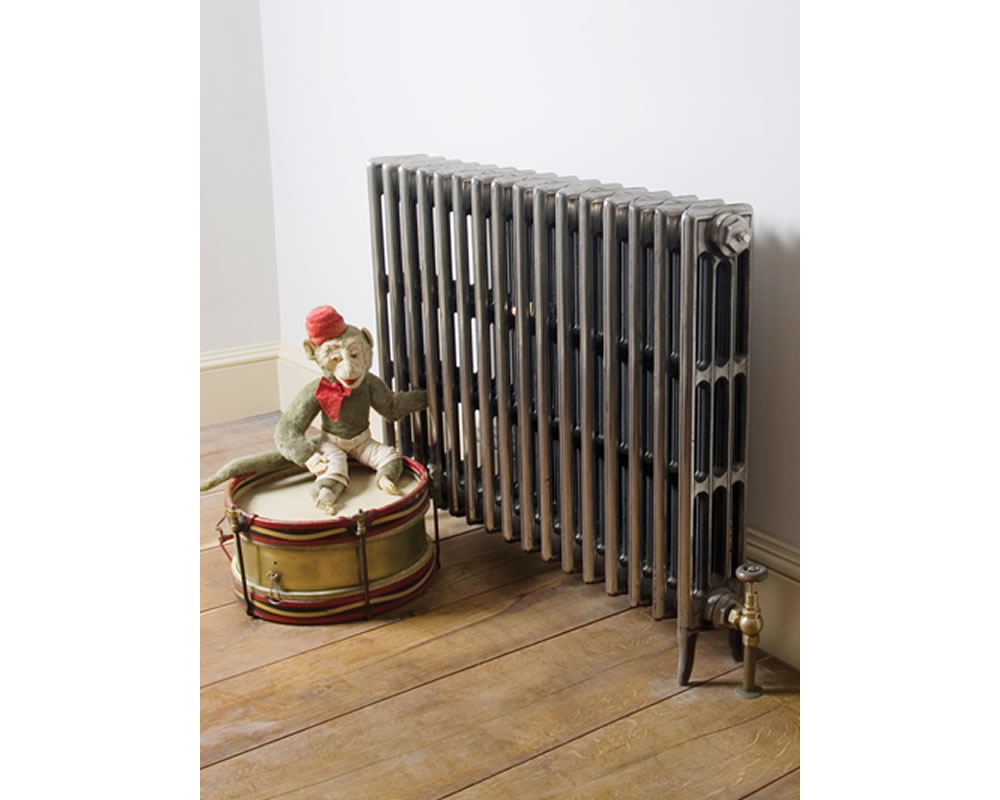

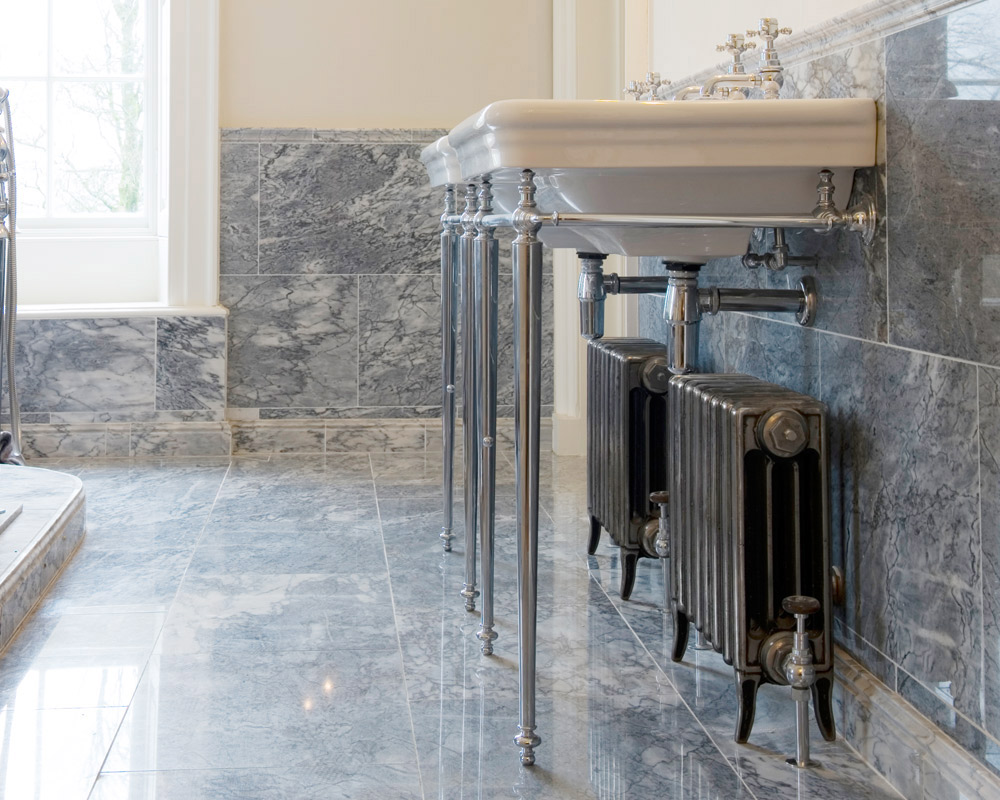

Today, this simple design gives a contemporary feel, especially when hand burnished.

Also available - the 2 column Victorian, 6 column Victorian and the 9 column Victorian radiator.

All our cast iron radiators can be hand gilded. Click below to view just a few of the bespoke options available.

LIFETIME GUARANTEE.

An alternative product you may also be interested in would be our Victorian 6 Column Cast Iron Radiator.

SRP from £24.00 per section

See Bespoke Finishes

360° View

Nearest Stockist
Radiator section colours and finishes

Can be painted in any colour of your choice or why not choose from one of the many designer colours available.

With our onsite paint and spray shop facilities, we can finish any radiator from a choice of over 10,000 colours and offer an expert colour matching service to attain even greater levels of customisation.

Please note that colours can vary from printed brochures and those shown on websites, we recommend a free colour swatch prior to purchase which can be arranged via your stockist.

Dimensions / Further Details

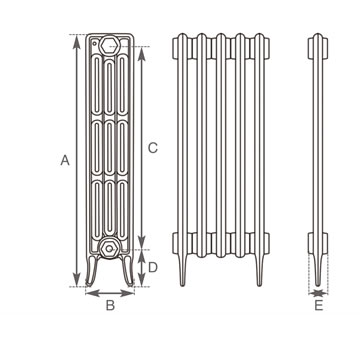

Victorian 4 column radiator measurements

* per section

Code Column
Qty		 A
(mm)		 B
(mm)		 C
(mm)		 D
(mm)		 E
(mm)		 ΔT 30°* ΔT 50°* ΔT 60°* Weight (KG)* Stock
Status
BTUs Watts BTUs Watts BTUs Watts Empty Filled
TBK126/127 4 325 145 205 80 50 73 21 139 41 175 51 3.2 3.7
LD060/061 4 460 140 300 105 61 98 29 185 54 232 68 3.8 4.4
LD015/016 4 660 140 500 115 61 136 40 261 77 330 97 5.6 6.5
LD011/012 4 760 140 600 115 61 159 47 306 90 386 113 6.5 7.5
LD013/014 4 810 160 640 120 61 182 53 355 104 451 132 8 9.2

The above measurements are given for guidance only and should not be used for the fixing of pipework.

Due to our radiators being bespoke and hand assembled, variations in seal compression and the machined faces can occur. We are able to supply measurements prior to dispatch once we have completed the assembly process should you require them.

Carron accepts no responsibility for customers/clients who choose to install pipe work prior to having their cast iron radiators delivered to site.

Code Compatible Wall Stays
HAN103 HAN120 HAN121 HAN122 HAN123 HAN124 HAN125 HAN126 HAN127 HAN128 HAN129 HAN130 HAN131 HAN205 LD055 LD056 RTO035
TBK126/127 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
LD060/061 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
LD015/016 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
LD011/012 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
LD013/014 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes

Radiator Heating Elements

All our radiator heating elements are compatible with all our cast iron radiators.

Please refer to the table below for the minimum number of sections required for each radiator in this range. ✝Denotes the minimum number of sections required to achieve maximum heat output for the heating element.

Heat Output 1200 Watts 1500 Watts 2000 Watts
Code
Minimum no. of sections Minimum no. of sections Minimum no. of sections
TBK126/127 11 (29✝) 12 (37✝) 13 (49✝)
LD060/061 9 (22✝) 10 (28✝) 11 (37✝)
LD015/016 9 (16✝) 10 (19✝) 11 (26✝)
LD011/012 9 (13✝) 10 (17✝) 11 (22✝)
LD013/014 9 (12✝) 10 (14✝) 11 (19✝)
