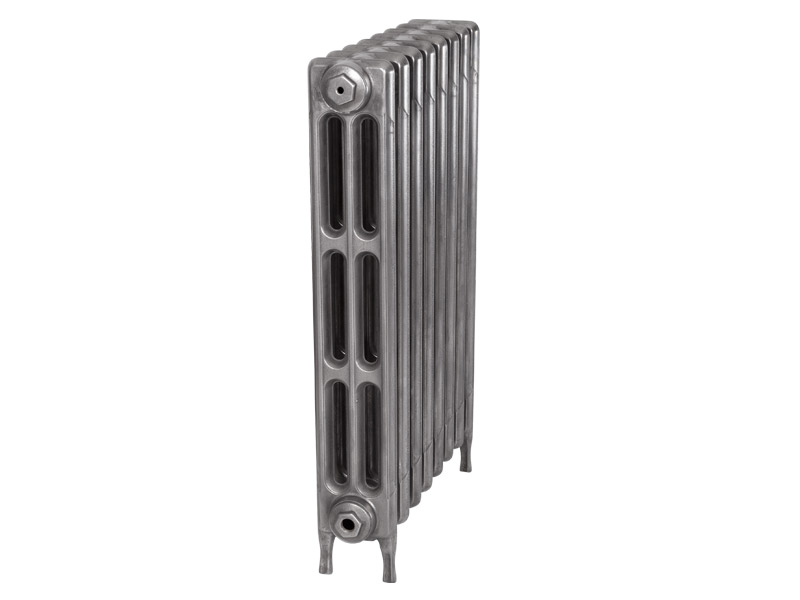

Victorian 3 Column Cast Iron Radiator

French Grey

Description

Forming part of the Victorian range of Cast Iron Radiators, the 3 column 735mm high model sits perfectly between the 2 and 4 column versions. This means a Victorian radiator can now be specified with widths between the 80mm (2 column) and 140mm (4 column) with a profile of 120mm for the 3 column.

This ever popular range suits a wide variety of finishes and can be complimented by our extensive range of radiator accessories.

All our cast iron radiators can be hand gilded. Click below to view just a few of the bespoke options available.

LIFETIME GUARANTEE.

An alternative product you may also be interested in would be our Victorian 4 Column Cast Iron Radiator.

SRP from £24.00 per section

See Bespoke Finishes

360° View

Nearest Stockist
Radiator section colours and finishes

Can be painted in any colour of your choice or why not choose from one of the many designer colours available.

With our onsite paint and spray shop facilities, we can finish any radiator from a choice of over 10,000 colours and offer an expert colour matching service to attain even greater levels of customisation.

Please note that colours can vary from printed brochures and those shown on websites, we recommend a free colour swatch prior to purchase which can be arranged via your stockist.

Dimensions / Further Details

Victorian 3 column cast iron radiator measurements

* per section

Code Column
Qty		 A
(mm)		 B
(mm)		 C
(mm)		 D
(mm)		 E
(mm)		 ΔT 30°* ΔT 50°* ΔT 60°* Weight (KG)* Stock
Status
BTUs Watts BTUs Watts BTUs Watts Empty Filled
LD267/268 3 450 120 300 105 62 89 26 163 48 205 60 3.62 4.21
LD265/266 3 745 120 600 105 62 140 41 271 80 345 101 5.16 6.1

The above measurements are given for guidance only and should not be used for the fixing of pipework.

Due to our radiators being bespoke and hand assembled, variations in seal compression and the machined faces can occur. We are able to supply measurements prior to dispatch once we have completed the assembly process should you require them.

Carron accepts no responsibility for customers/clients who choose to install pipe work prior to having their cast iron radiators delivered to site.

Code Compatible Wall Stays
HAN103 HAN120 HAN121 HAN122 HAN123 HAN124 HAN125 HAN126 HAN127 HAN128 HAN129 HAN130 HAN131 HAN205 LD055 LD056 RTO035
LD267/268 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
LD265/266 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes

Radiator Heating Elements

All our radiator heating elements are compatible with all our cast iron radiators.

Please refer to the table below for the minimum number of sections required for each radiator in this range. ✝Denotes the minimum number of sections required to achieve maximum heat output for the heating element.

Heat Output 1200 Watts 1500 Watts 2000 Watts
Code
Minimum no. of sections Minimum no. of sections Minimum no. of sections
LD267/268 9 (25✝) 10 (31✝) 11 (42✝)
LD265/266 9 (15✝) 10 (19✝) 11 (25✝)
