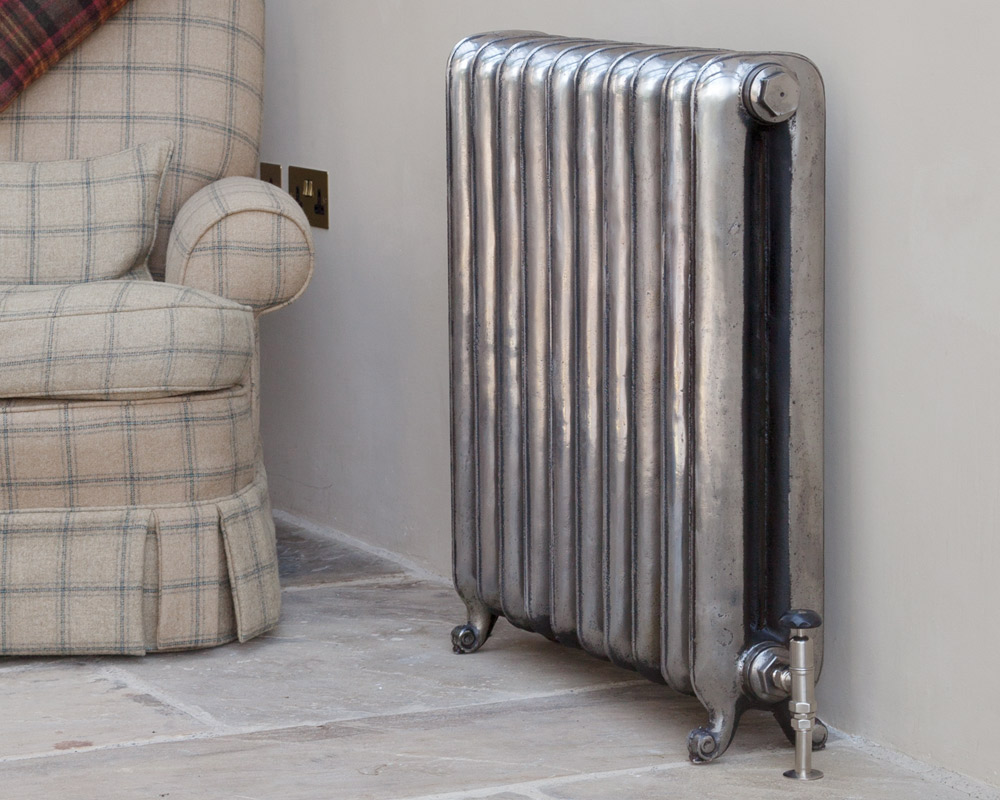

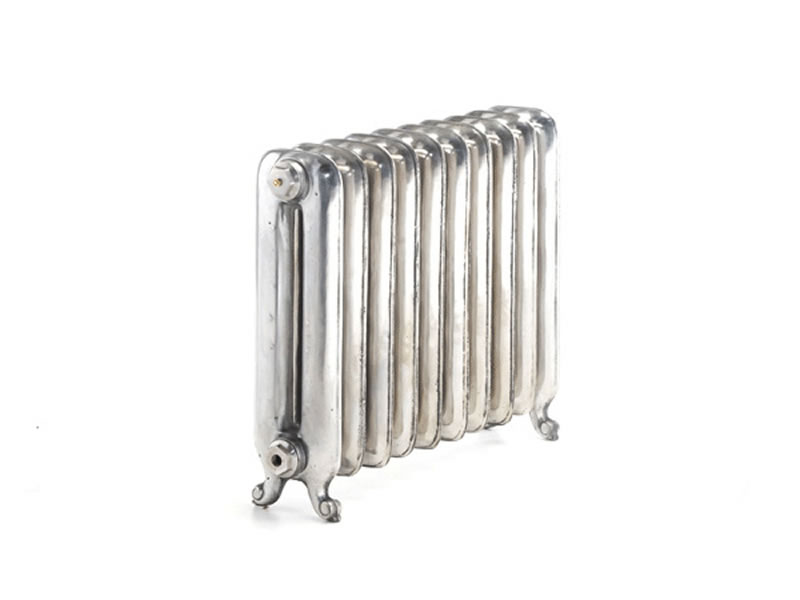

Duchess 2 Column Cast Iron Radiators

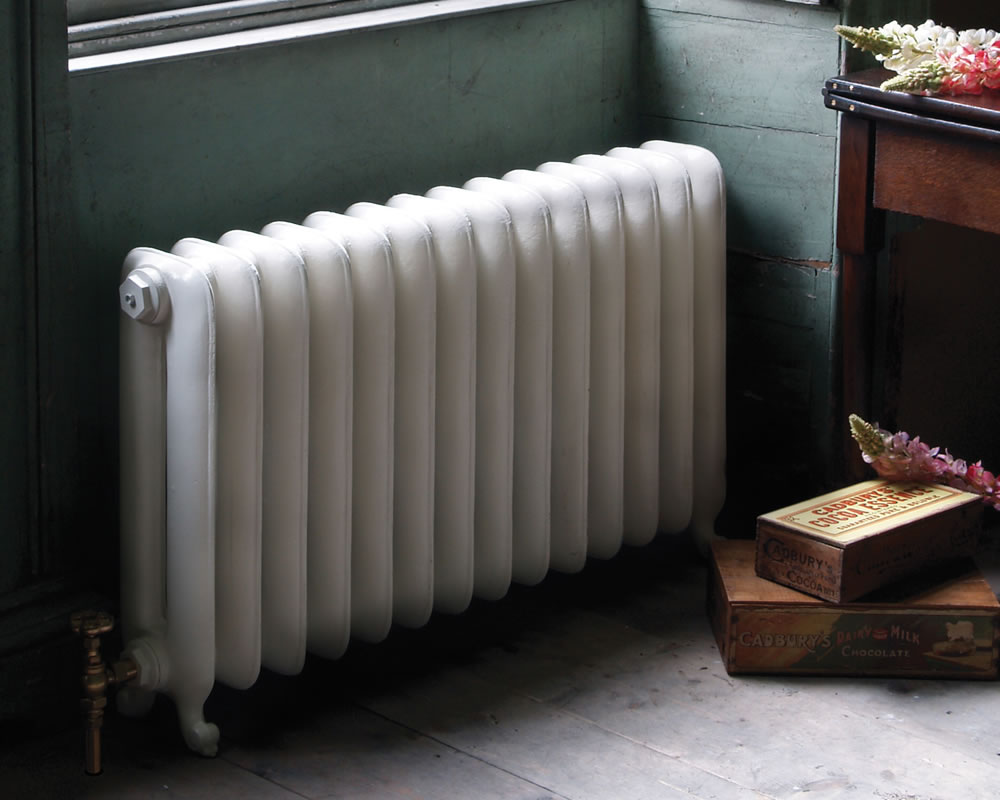

Duchess cast iron radiator painted in parchment white

Parchment White

Description

Available in 2 heights - this 2 column American radiator has a simple, fresh appearance with a slow curving top and rounded columns.

A real modern classic that will make a feature in any home.

If a shallower radiator is required we also offer the Duchess 4 column cast iron radiator.

All our cast iron radiators can be hand gilded. Click below to view just a few of the bespoke options available.

LIFETIME GUARANTEE.

An alternative product you may also be interested in would be our Rococo 1 Column Cast Iron Radiator.

SRP from £50.00 per section

See Bespoke Finishes

360° View

Nearest Stockist
Radiator section colours and finishes

Can be painted in any colour of your choice or why not choose from one of the many designer colours available.

With our onsite paint and spray shop facilities, we can finish any radiator from a choice of over 10,000 colours and offer an expert colour matching service to attain even greater levels of customisation.

Please note that colours can vary from printed brochures and those shown on websites, we recommend a free colour swatch prior to purchase which can be arranged via your stockist.

Dimensions / Further Details

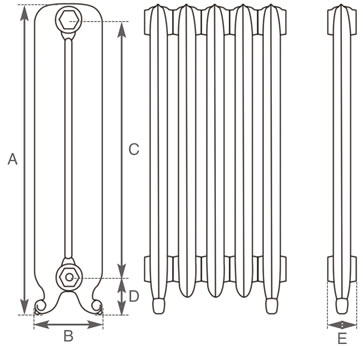

Duchess 2 column cast iron radiator measurements

* per section

Code Column
Qty
A
(mm)
B
(mm)
C
(mm)
D
(mm)
E
(mm)
ΔT 30°* ΔT 50°* ΔT 60°* Weight (KG)* Stock
Status
BTUs Watts BTUs Watts BTUs Watts Empty Filled
TBK023/024 2 590 175 450 100 71 156 46 298 87 375 110 8.8 10.4
TBK021/022 2 785 175 640 100 71 200 59 382 112 481 141 11.6 13.6

The above measurements are given for guidance only and should not be used for the fixing of pipework.

Due to our radiators being bespoke and hand assembled, variations in seal compression and the machined faces can occur. We are able to supply measurements prior to dispatch once we have completed the assembly process should you require them.

Carron accepts no responsibility for customers/clients who choose to install pipe work prior to having their cast iron radiators delivered to site.

Code Compatible Wall Stays
HAN103 HAN120 HAN121 HAN122 HAN123 HAN124 HAN125 HAN126 HAN127 HAN128 HAN129 HAN130 HAN131 HAN205 LD055 LD056 RTO035
TBK023/024 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
TBK021/022 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes

Radiator Heating Elements

All our radiator heating elements are compatible with all our cast iron radiators.

Please refer to the table below for the minimum number of sections required for each radiator in this range. Denotes the minimum number of sections required to achieve maximum heat output for the heating element.

Heat Output 1200 Watts 1500 Watts 2000 Watts
Code
Minimum no. of sections Minimum no. of sections Minimum no. of sections
TBK023/024 8 (14) 9 (17) 10 (23)
TBK021/022 8 (11) 9 (13) 10 (18)
