Deco Cast Iron Radiators

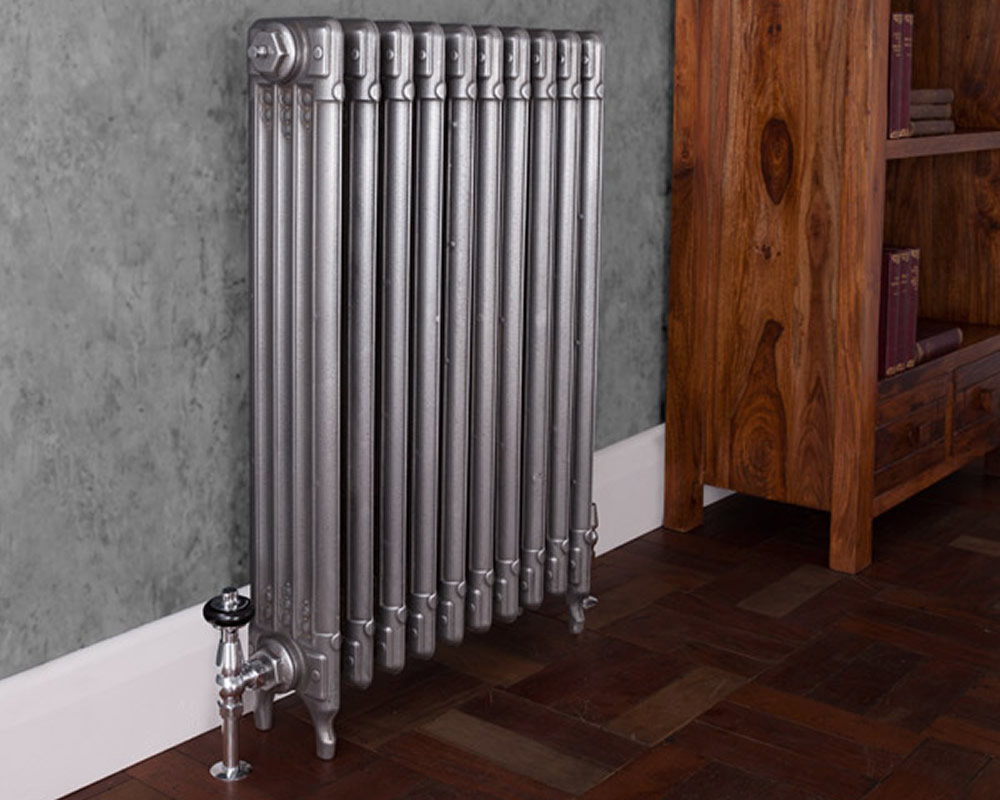

Deco cast iron radiator hand burnished in period property

Hand Burnished

Description

Available in 2 heights - this statuesque design combines strong geometric forms with delicate detailing, giving a strong Art Deco look.

Sleek and symmetrical, this radiator will bring a touch of 1930s glamour to any home.

All our cast iron radiators can be hand gilded. Click below to view just a few of the bespoke options available.

LIFETIME GUARANTEE.

An alternative product you may also be interested in would be our Eton Cast Iron Radiator.

SRP from £42.00 per section

See Bespoke Finishes

360° View

Nearest Stockist

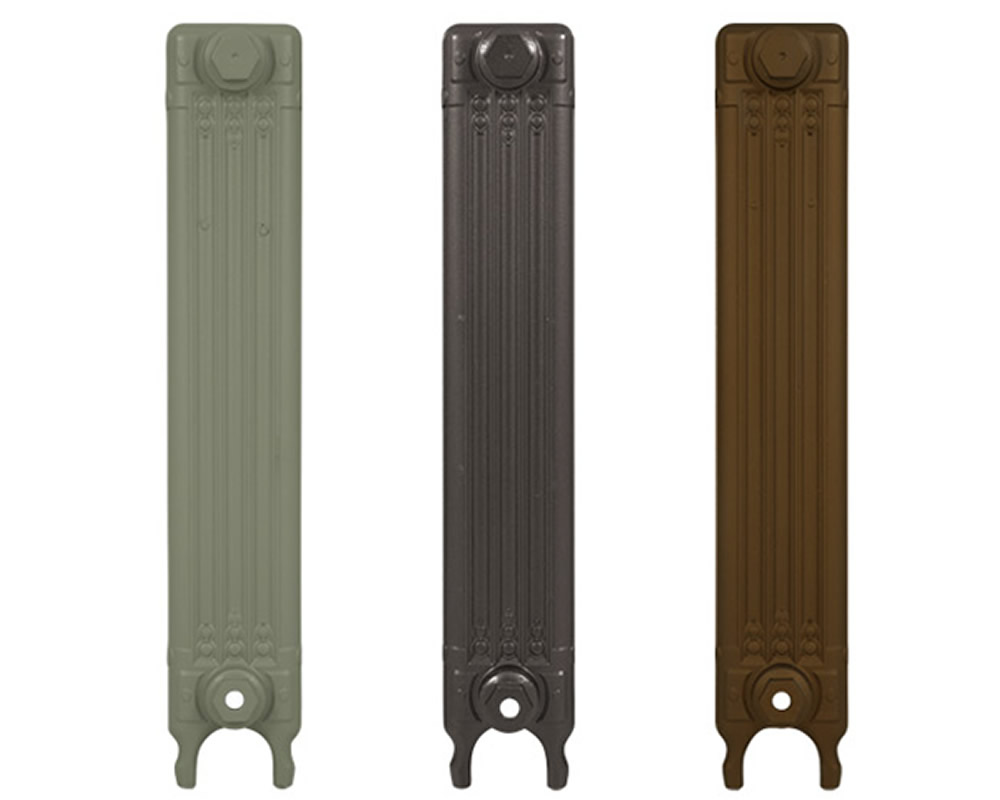

Radiator section colours and finishes

Can be painted in any colour of your choice or why not choose from one of the many designer colours available.

With our onsite paint and spray shop facilities, we can finish any radiator from a choice of over 10,000 colours and offer an expert colour matching service to attain even greater levels of customisation.

Please note that colours can vary from printed brochures and those shown on websites, we recommend a free colour swatch prior to purchase which can be arranged via your stockist.

Dimensions / Further Details

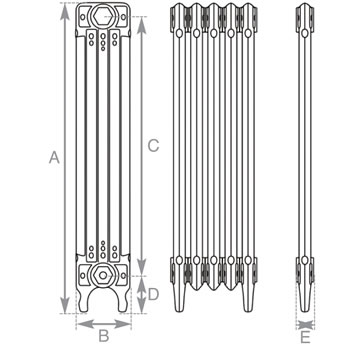

Deco cast iron radiator measurements

* per section

Code Column
Qty
A
(mm)
B
(mm)
C
(mm)
D
(mm)
E
(mm)
ΔT 30°* ΔT 50°* ΔT 60°* Weight (KG)* Stock
Status
BTUs Watts BTUs Watts BTUs Watts Empty Filled
TBK050/051 1 585 140 450 100 52 107 31 202 59 253 74 5.2 6.3
TBK048/049 1 795 140 660 100 52 139 41 267 78 337 99 7.1 8.4

The above measurements are given for guidance only and should not be used for the fixing of pipework.

Due to our radiators being bespoke and hand assembled, variations in seal compression and the machined faces can occur. We are able to supply measurements prior to dispatch once we have completed the assembly process should you require them.

Carron accepts no responsibility for customers/clients who choose to install pipe work prior to having their cast iron radiators delivered to site.

Code Compatible Wall Stays
HAN103 HAN120 HAN121 HAN122 HAN123 HAN124 HAN125 HAN126 HAN127 HAN128 HAN129 HAN130 HAN131 HAN205 LD055 LD056 RTO035
TBK050/051 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes No No Yes
TBK048/049 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes No No Yes

Radiator Heating Elements

All our radiator heating elements are compatible with all our cast iron radiators.

Please refer to the table below for the minimum number of sections required for each radiator in this range. Denotes the minimum number of sections required to achieve maximum heat output for the heating element.

Heat Output 1200 Watts 1500 Watts 2000 Watts
Code
Minimum no. of sections Minimum no. of sections Minimum no. of sections
TBK050/051 11 (20) 11 (25) 12 (34)
TBK048/049 11 (15) 11 (19) 12 (26)
